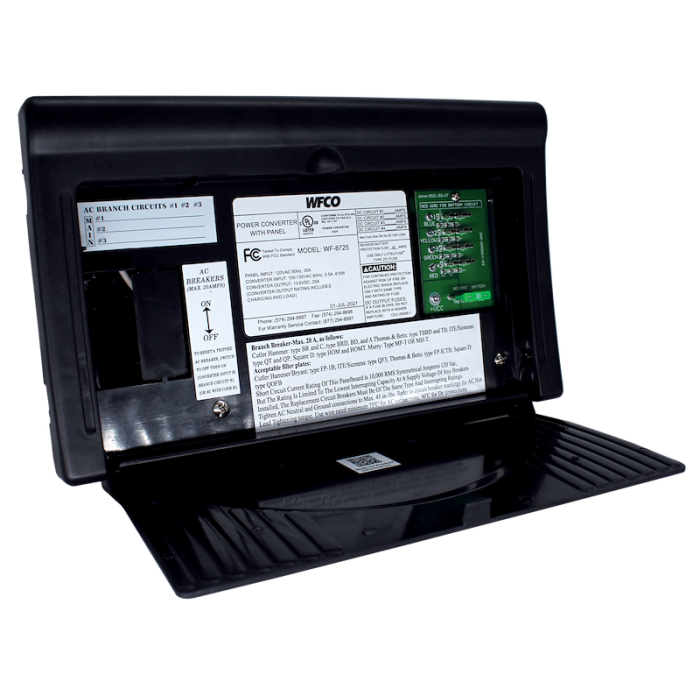

WFCO Black 25 Amp Distribution Panel Converter w/ Auto-Detect
WFCO Black 25 Amp Distribution Panel Converter w/ Auto-Detect
WF-8725 model converters provide 25A DC output and a highly reliable nominal 13.6V DC with or without a battery. No extra filtering is required.
Item #
101205
Color
Black
Special Order Item
No
Ships LTL Freight
No
Return Policy
30 Days (After Delivery)
5+ In Stock
$152.99
Description / WFCO Black 25 Amp Distribution Panel Converter w/ Auto-Detect
WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 Vdc range “float” mode, 13.6V DC range “absorption” charge mode, and a 14.4V DC range “bulk” charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the 8725 operates only when needed and ensures quiet operation.
Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30-amp main AC breaker and a total of up to three 20-amp branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.
*Power center does NOT include individual fuses or breakers.
Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30-amp main AC breaker and a total of up to three 20-amp branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.
*Power center does NOT include individual fuses or breakers.
More Information
| Item # | 101205 |
|---|---|
| Brand | WFCO |
| Series | 8700 Series |
| Model | WF-8725-AD |
| Replaces | WF-8725-P |
| Style | Distribution Panel |
| Input | 105-130 VAC, 60 Hz |
| Output Amperage | 25 Amp (Output Power: 340 W) |
| Color | Black |
| Features | Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) AC Circuits (twin breakers): 4 (Main and 3 branch circuits) DC Circuits (Quantity): 4 (one battery circuit) Case Material: Plastic Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Cooling System: Yes Certifications: FCC With Auto-Detect Battery Detection |
| Included | *Power center does NOT include individual fuses or breakers. |
| Dimensions | 11-7/8″ W x 7-5/16″ H x 3-3/4″ D |
| Warranty | Limited 2 Year Manufacturer Warranty |
| Net Weight | 4.75 |
| Special Order Item | No |
| Return Policy | 30 Days (After Delivery) |
| UPC | 816227012982 |
