Replacement 8' to 25' Dometic Aluminum Awning Roller Tube

Dometic's aluminum roller tubes are made to fit most standard* size patio awnings ranging from 8' to 25'.

The finished size of each roller tube will measure approximately 6" shorter in length (+/- 5/16") than the overall measurement of your awning from center of the left hand awning arm to center of the right hand awning arm.

For Example: If you select the 20' awning size, then the roller tube you will physically receive will measure approximately 6" shorter in length for a measurement of 19' 6" (+/- 5/16") so that it properly fits on your 20' awning.

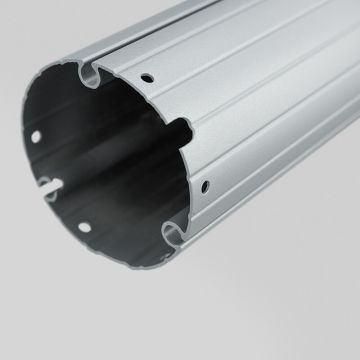

The diameter of this roller tube is approximately 3-1/2" (+/- 1/8") and has 3 channels for the poly cords that are sewn into your existing awning fabric and/or LED light strips that you might also have already on your existing awning assembly.

MANUFACTURER PART #'s:

Roller Tube for an 8' Awning - 3108346.008 (actual product will measure approximately 7' 6")

Roller Tube for a 9' Awning - 3108346.009 (actual product will measure approximately 8' 6")

Roller Tube for a 10' Awning - 3108346.010 (actual product will measure approximately 9' 6")

Roller Tube for an 11' Awning - 3108346.011 (actual product will measure approximately 10' 6")

Roller Tube for a 12' Awning - 3108346.012 (actual product will measure approximately 11' 6")

Roller Tube for a 13' Awning - 3108346.013 (actual product will measure approximately 12' 6")

Roller Tube for a 14' Awning - 3108346.014 (actual product will measure approximately 13' 6")

Roller Tube for a 15' Awning - 3108346.015 (actual product will measure approximately 14' 6")

Roller Tube for a 16' Awning - 3108346.016 (actual product will measure approximately 15' 6")

Roller Tube for a 17' Awning - 3108346.017 (actual product will measure approximately 16' 6")

Roller Tube for an 18' Awning - 3108346.018 (actual product will measure approximately 17' 6")

Roller Tube for a 19' Awning - 3108346.019 (actual product will measure approximately 18' 6")

Roller Tube for a 20' Awning - 3108346.020 (actual product will measure approximately 19' 6")

Roller Tube for a 21' Awning - 3108346.021 (actual product will measure approximately 20' 6")

Roller Tube for a 22' Awning - 3108346.022 (actual product will measure approximately 21' 6")

Roller Tube for a 23' Awning - 3108346.023 (actual product will measure approximately 22' 6")

Roller Tube for a 24' Awning - 3108346.024 (actual product will measure approximately 23' 6")

Roller Tube for a 25' Awning - 3108346.025 (actual product will measure approximately 24' 6")

NOTE: If you are not sure if this roller tube is the correct one for you, you will need to take a photo of the manufacturer's information off of the label on your existing roller tube (Model #, Product #, SKU, etc...) and email us that information so we can verify what size you will need to order. If the label is not there anymore or if it is not legible, then you will need to contact Dometic directly at 800-544-4881 for further assistance.

*Dometic manufactures what they call "odd sized" awnings, meaning a size that is not considered standard. STANDARD awnings start at 8' in size (measuring from the center of the left hand awning arm to the center of the right hand awning arm) and go up in size by 1' increments.

An ODD SIZED awning start at 8' 6" in size (measuring from the center of the left hand awning arm to the center of the right hand awning arm) and go up in size by 1' increments. Because an ODD SIZED awning starts out 6" larger than the standard size awnings, you will need a specific length roller tube to properly fit on your awning. These roller tubes will not work for your application.

For Example: If you have an ODD SIZED awning of 20' 6" from center of arm to center of arm, then the roller tube you will actually need will have to measure 20' (+/- 5/16") exactly.

Please contact us if you are in need of a roller tube for your odd sized awning.
